Name: Festo 541484 Analogue module CPX-4AE-I
Brand: Festo

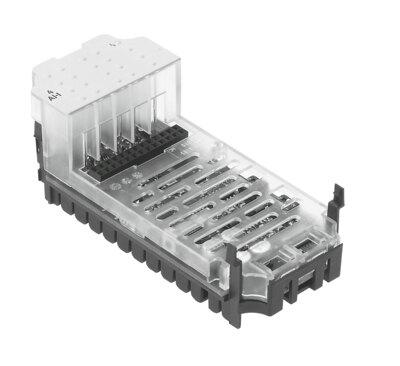

Analogue module CPX-4AE-I

The Festo 541484 is a 47 g industrial component featuring dimensions of 50 mm by 107 mm by 50 mm, housed in reinforced PA and PC with 1 group LED diagnostics. Operating on a nominal 24 V DC voltage within an 18 V to 30 V range, it provides 4 inputs with a 12-bit plus sign data format and an internal cycle time of 10 ms. Parameterization includes channel forcing, measured value smoothing, and wire break monitoring, supported by a maximum shielded cable length of 30 m and a low corrosion stress CRC rating of 1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 541484
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 541484.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (incl. interlinking block and connection system) | 50 mm x 107 mm x 50 mm
Product weight: 47 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: Depending on terminal block
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
Max. cable length: 30 m | Shielded
LABS (PWIS) conformity: VDMA24364-B2-L
Housing material: PA-reinforced | PC
LED indicators: 1 group diagnostics
Diagnostics: Wire break per channel | Limit value violation per channel | Short circuit, input signal | Parameterization error
Parameterization: Data format | Forcing per channel | Limit value monitoring per channel | Measured value smoothing | Signal range per channel | Response to short circuit | Wire break monitoring per channel
Internal cycle time: 10 ms
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Intrinsic current consumption at nominal operating voltage: Type. 50 mA
No. of inputs: 4
Data format: 12 bit + sign | Scalable to 15 bits
Repetition accuracy: 0.15 % at 25 °C
Basic error limit at 25°C: ±0.5%
Operating error limit related to the ambient temperature range: ±0.6%

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 541484. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
