Name: Festo 541486 Analogue module CPX-4AE-T
Brand: Festo

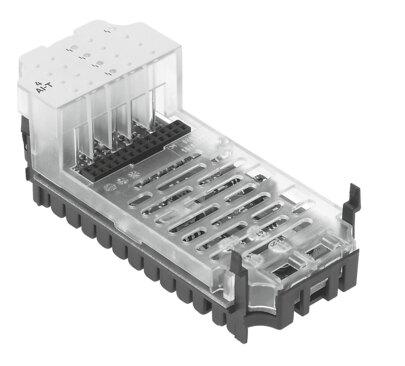

Analogue module CPX-4AE-T

The Festo part number 541486 is an industrial component featuring 4 inputs with a data format of 15 bit plus sign and binary representation in tenths of a degree, operating on a nominal DC voltage of 24 V with an intrinsic current consumption of typically 50 mA. Measuring 50 mm by 107 mm by 50 mm and weighing 47 g, the unit incorporates PA-reinforced and PC housing materials alongside LED indicators for 1 group and 4 channel diagnostics. It functions within an ambient temperature range of -5 °C to 50 °C and provides comprehensive parameterization and diagnostic capabilities including wire break, short circuit, and limit value monitoring. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 541486
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 541486.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (incl. interlinking block and connection system) | 50 mm x 107 mm x 50 mm
Product weight: 47 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: Depending on terminal block
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
Max. cable length: 200 m | Shielded
LABS (PWIS) conformity: VDMA24364-B2-L
Housing material: PA-reinforced | PC
LED indicators: 1 group diagnostics | 4 channel diagnostics
Diagnostics: Wire break per channel | Limit value violation per channel | Short circuit, input signal | Parameterization error
Parameterization: Forcing per channel | Limit value monitoring per channel | Unit of measurement | Measured value smoothing | Sensor type per channel | Wire break monitoring per channel
Internal cycle time: 250 ms
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Intrinsic current consumption at nominal operating voltage: Type. 50 mA
No. of inputs: 4
Data format: 15 bit + sign | Binary representation in tenths of a degree
Repetition accuracy: 0.05 % at 25 °C
Basic error limit at 25°C: ±0.6 K for Pt sensors
Operating error limit related to the ambient temperature range: ±0.6%

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 541486. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
