Festo
541540

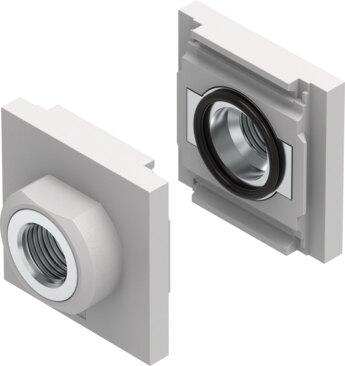

Sub-base-SET MS6-AGD-EX
The Festo 541540 is an industrial component from the MS series featuring a size 6 body and G1/2 pneumatic connections on both ports 1 and 2. Constructed with a die-cast aluminum sub-base, NBR seals, and steel screws, this RoHS-compliant unit supports a medium temperature range of -10 °C to 60 °C and has a product weight of 300 g. It provides a corrosion resistance class (CRC) of 2 for moderate corrosion stress and conforms to VDMA24364-B1/B2-L LABS (PWIS) requirements. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541540
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541540.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MS
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Product weight
- 300 g
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
- Seals material
- NBR
- Material of screws
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 541540. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
