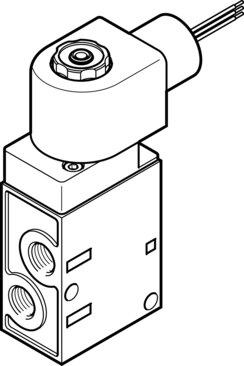

Reference imageConfirm configuration by manufacturer part number.
Festo
541659
Air solenoid valve MFH-3-1/4-120-EX
The Festo part number 541659 is an electrical 3/2-way closed monostable industrial component with a width of 73 mm, a nominal width of 5 mm, and a normal nominal flow rate of 800 l/min through G1/4 pneumatic working ports. Featuring a piloted type of control, soft sealing principle, negative overlap lap, non-reversible flow direction, and adjustable exhaust air function, this unit operates at 120V AC across an operating pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar). It incorporates a mechanical spring reset method, detenting manual override, and IP65 degree of protection, while holding FM 3026030 explosion protection certification for US Class I, II, and III (Div. 1 and 2) and EPL Gb and Gc environments with any mounting position and a 29 ms off switching time. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541659
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541659.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 73 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 120V AC
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Reset method
- Mechanical spring
- Explosion protection certication outside the EU
- Class I, Div. 1 (US) | Class I, Div. 2 (US) | Class II, Div. 1 (US) | Class II, Div. 2 (US) | Class III, Div. 1 (US) | Class III, Div. 2 (US) | EPL Gb (US) | EPL Gc (US)
- Certicate issuing authority
- FM 3026030
- Degree of protection
- IP65
- Nominal width
- 5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Switching time off
- 29 ms
- On switching time
- 12 ms
- Coil characteristics
- 120 V AC: 60 Hz, initial power 11.5 VA, holding power 6.5 VA
- Explosion prevention and protection
- Class I, Div. 1 (US) | Class I, Div. 2 (US) | Class II, Div. 1 (US) | Class II, Div. 2 (US) | Class III, Div. 1 (US)
