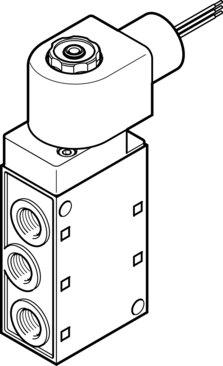

Reference imageConfirm configuration by manufacturer part number.
Festo
541663
Air solenoid valve MFH-5-1/4-120-EX
The Festo 541663 is an electrical industrial component featuring a 5/2-way, closed, monostable valve function with a piloted type of control and negative overlap lap. This 73 mm wide unit delivers a normal nominal flow rate of 1000 l/min through G1/4 pneumatic working ports, operating at pressures from 0.22 MPa to 0.8 MPa and a 120V AC operating voltage with a mechanical spring reset method. Certified under FM 3026030 with IP65 protection, it includes explosion protection certifications for US Class I, II, and III (Div. 1 and 2) alongside EPL Gb and Gc, an adjustable exhaust air function, soft sealing, and a detenting manual override. Submit your exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541663
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541663.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 73 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 120V AC
- Operating pressure
- 0.22 MPa...0.8 MPa | 2.2 bar...8 bar
- Reset method
- Mechanical spring
- Explosion protection certication outside the EU
- Class I, Div. 1 (US) | Class I, Div. 2 (US) | Class II, Div. 1 (US) | Class II, Div. 2 (US) | Class III, Div. 1 (US) | Class III, Div. 2 (US) | EPL Gb (US) | EPL Gc (US)
- Certicate issuing authority
- FM 3026030
- Degree of protection
- IP65
- Nominal width
- 7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Switching time off
- 29 ms
- On switching time
- 10 ms
- Coil characteristics
- 120 V AC: 60 Hz, initial power 11.5 VA, holding power 6.5 VA
- Explosion prevention and protection
- Class I, Div. 1 (US) | Class I, Div. 2 (US) | Class II, Div. 1 (US) | Class II, Div. 2 (US) | Class III, Div. 1 (US)
