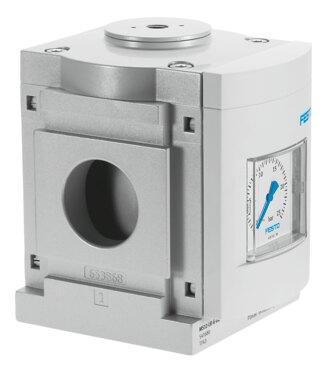

Reference imageConfirm configuration by manufacturer part number.
Festo
541680
Pressure regulator MS12-LR-G-PO
The Festo 541680 is a size 12 industrial component featuring a diaphragm regulator structural design with constant output pressure, primary pressure compensation, secondary exhausting, and a return flow characteristic. This MS series device operates within an input pressure range of 0.08 MPa to 2.1 MPa and a regulation range of 0.5 bar to 16 bar, delivering a normal nominal flow rate between 13,000 l/min and 22,000 l/min alongside a secondary venting flow rate of 600 l/min. Weighing 4000 g with a CRC 2 moderate corrosion stress rating, it supports in-line installation or retaining bracket mounting for compressed air per ISO 8573-1:2010 [7:4:4] and inert gases across a temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541680
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541680.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Series
- MS
- Mounting position
- Any
- Structural design
- Diaphragm regulator
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.08 MPa...2.1 MPa | 0.8 bar...21 bar
- Pressure regulation range
- 0.5 bar...16 bar
- Max. pressure hysteresis
- 0.04 MPa | 0.4 bar | 5.8 psi
- Flow rate of secondary venting
- 600 l/min
- Normal nominal ow rate (normalized to DIN 1343)
- 13000 l/min...22000 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 4000 g
- Type of mounting
- Alternatively: | In-line installation | With retaining bracket
- Pilot air port 12
- G1/4
- Pneumatic connection 1
- Sub-base
- Pneumatic connection 2
- Sub-base
- Covering material
- PA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 541680. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
