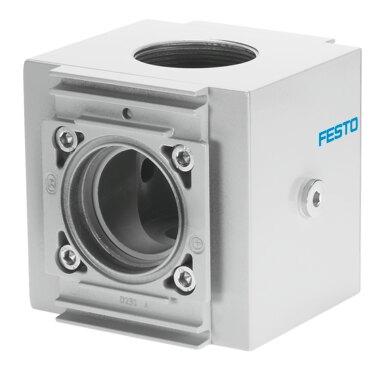

Reference imageConfirm configuration by manufacturer part number.
Festo
541681
Branching module MS12-FRM-G
The Festo 541681 is a branching module featuring a die-cast aluminum housing, sub-base, and mounting bracket with NBR seals, weighing 3000 g with an any mounting position capability for in-line installation or use with accessories. This component operates on compressed air according to ISO 8573-1:2010 [-:-:-] across an operating pressure range of 0 bar to 20 bar, supporting a standard nominal flow rate in the main flow direction 1 to 2 from 25000 l/min to 42000 l/min. It provides manifold module pneumatic connections 1 and 2, a G2 pneumatic connection 3, and a G1 pneumatic connection 4, while maintaining a corrosion resistance class of CRC 2 and VDMA24364-B1/B2-L LABS conformity within storage, medium, and ambient temperature limits of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541681
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541681.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Structural design
- Branching module
- Operating pressure
- 0 bar...20 bar
- Standard nominal ow rate in main ow direction 1 -> 2
- 25000 l/min...42000 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 3000 g
- Type of mounting
- In-line installation | With accessories
- Pneumatic connection 1
- Manifold module
- Pneumatic connection 2
- Manifold module
- Pneumatic connection 3
- G2
- Pneumatic connection 4
- G1
- Material of sub-base
- Die-cast aluminum
- Material of mounting bracket
- Die-cast aluminum
- Seals material
- NBR
- Housing material
- Die-cast aluminum
- Module connector material
- Die-cast aluminum
