Festo
541700

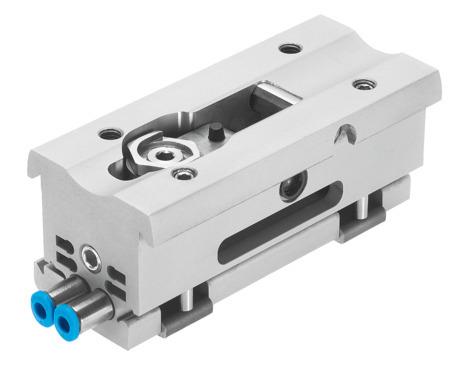

Intermediate position module DADM-DGC-25-A
The Festo part number 541700 is a size 25 industrial component weighing 430 g with an operating pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar, 36.25 psi to 116 psi) and a maximum impact velocity of 3 m/s. Designed for any mounting position by clamping directly to the cylinder DGC, it features a QS-4 pneumatic connection, position sensing via proximity switch, a maximum pivot time of 100 ms, and a repetition accuracy of 0.02 mm within an ambient temperature range of -10 °C to 60 °C. The construction incorporates an anodized wrought aluminum alloy housing, high-alloy stainless steel lever and clip, galvanized steel stop screws and nuts, and NBR seals, fulfilling CRC 2 moderate corrosion stress and VDMA24364-B1/B2-L LABS conformity while complying with RoHS material standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541700
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541700.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Mounting position
- Any
- Position sensing
- Via proximity switch
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Max. impact velocity
- 3 m/s
- Maximum pivot time
- 100 ms
- Repetition accuracy
- 0.02 mm
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 430 g
- Type of mounting
- Clamped to cylinder DGC
- Pneumatic connection
- QS-4
- Note on materials
- RoHS compliant
- Stop screw material
- Steel | Galvanized
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy | Anodized
- Lever material
- high-alloy stainless steel
- Clip material
- high-alloy stainless steel
- Nut material
- Steel | Galvanized
- Precision adjustment
- 2 mm
- Mode of operation
- Double-acting
