Festo
541701

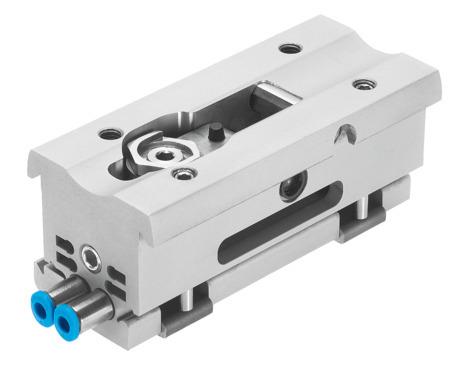

Intermediate position module DADM-DGC-32-A
The Festo part number 541701 is a size 32 industrial component featuring a weight of 530 g, a QS-4 pneumatic connection, and a mounting design that clamps directly to the DGC cylinder for installation in any position. Built with an anodized wrought aluminum alloy housing, high-alloy stainless steel lever and clips, galvanized steel stop screws and nuts, and NBR seals, it delivers a repetition accuracy of 0.02 mm, a maximum impact velocity of 3 m/s, and a maximum pivot time of 100 ms within an operating pressure range of 0.25 MPa to 0.8 MPa. This RoHS-compliant unit accommodates position sensing via proximity switch, operates at ambient temperatures from -10 °C to 60 °C, exhibits CRC 2 moderate corrosion resistance, and conforms to VDMA24364-B1/B2-L LABS standards. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541701
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541701.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Mounting position
- Any
- Position sensing
- Via proximity switch
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Max. impact velocity
- 3 m/s
- Maximum pivot time
- 100 ms
- Repetition accuracy
- 0.02 mm
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 530 g
- Type of mounting
- Clamped to cylinder DGC
- Pneumatic connection
- QS-4
- Note on materials
- RoHS compliant
- Stop screw material
- Steel | Galvanized
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy | Anodized
- Lever material
- high-alloy stainless steel
- Clip material
- high-alloy stainless steel
- Nut material
- Steel | Galvanized
- Precision adjustment
- 2 mm
- Mode of operation
- Double-acting
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 541701. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
