Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

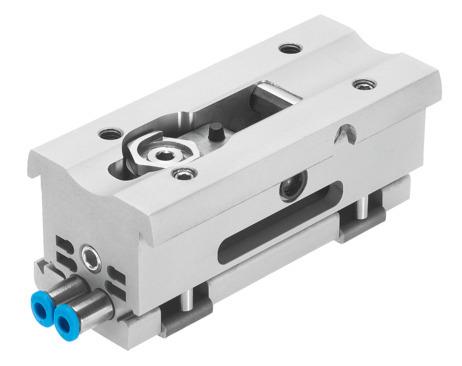

Reference imageConfirm configuration by manufacturer part number.
Festo
541702
Intermediate position module DADM-DGC-40-A
The Festo part number 541702 is an industrial component featuring size 40 dimensions and a weight of 970 g, designed to mount directly via clamping to the DGC cylinder in any position. It operates within a pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar or 36.25 psi to 116 psi) and an ambient temperature range of -10 °C to 60 °C, supporting a maximum impact velocity of 3 m/s, a maximum pivot time of 300 ms, and a repetition accuracy of 0.02 mm with position sensing via proximity switch. Constructed with an anodized wrought aluminum alloy housing, high-alloy stainless steel lever and clip, galvanized steel stop screws and nuts, and TPE-U(PU) seals, this RoHS-compliant unit achieves a CRC rating of 2 for moderate corrosion stress and VDMA24364-B1/B2-L LABS conformity through its M5 pneumatic connection. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541702
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541702.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Mounting position
- Any
- Position sensing
- Via proximity switch
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Max. impact velocity
- 3 m/s
- Maximum pivot time
- 300 ms
- Repetition accuracy
- 0.02 mm
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 970 g
- Type of mounting
- Clamped to cylinder DGC
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Stop screw material
- Steel | Galvanized
- Seals material
- TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Anodized
- Lever material
- high-alloy stainless steel
- Clip material
- high-alloy stainless steel
- Nut material
- Steel | Galvanized
- Precision adjustment
- 4 mm
- Mode of operation
- Double-acting
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 541702. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
