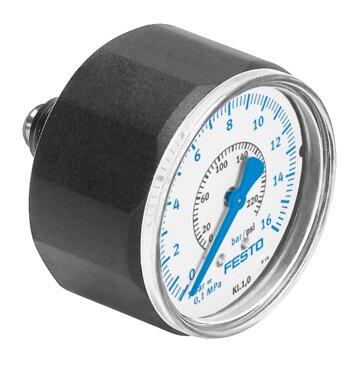

Reference imageConfirm configuration by manufacturer part number.
Festo
541733
Pressure gauge MA-27-16-R1/8
The Festo 541733 is a Bourdon tube pressure gauge featuring a 27 nominal size, an in-line installation design, and a centered rear R1/8 pneumatic connection with PA-reinforced media-contacting materials and housing. It operates within a 0 bar to 16 bar (0 psi to 232 psi) display and operating pressure range for neutral liquids and inert gases, excluding acetylene and oxygen, across an ambient and medium temperature range of 0 °C to 60 °C. Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas, this IP43-rated RoHS-compliant component achieves measurement accuracy class 4 with an intermittent load factor of 0.66 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541733
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541733.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...16 bar | 0 psi...232 psi
- Pressure gauge nominal size
- 27
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1.6 MPa | 0 bar...16 bar | 0 psi...232 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 4
- Degree of protection
- IP43
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- R1/8
- Materials in contact with the media
- PA-reinforced
- Material of screwed plug
- PA-reinforced
- Housing material
- PA
- Inspection window material
- PS
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 541733. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
