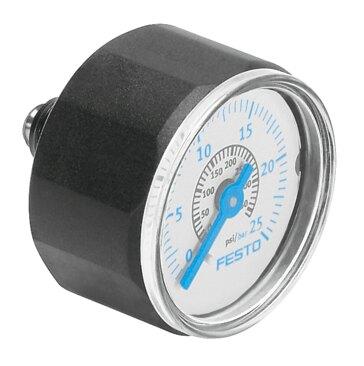

Reference imageConfirm configuration by manufacturer part number.
Festo
541734
Pressure gauge MA-27-25-R1/8
The Festo 541734 is a Bourdon tube pressure gauge featuring a nominal size of 27 and a display and operating pressure range of 0 bar to 25 bar (0 psi to 362.5 psi). Designed for in-line installation with a centered rear R1/8 pneumatic connection, this component operates with inert gases and neutral liquids within a medium and ambient temperature range of 0 °C to 60 °C. It is constructed with a PA housing, PA-reinforced screwed plug, and PA-reinforced media-contacting materials, providing an IP43 degree of protection and ATEX certification for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to receive a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541734
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541734.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...25 bar | 0 psi...362.5 psi
- Pressure gauge nominal size
- 27
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...2.5 MPa | 0 bar...25 bar | 0 psi...362.5 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 4
- Degree of protection
- IP43
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- R1/8
- Materials in contact with the media
- PA-reinforced
- Material of screwed plug
- PA-reinforced
- Housing material
- PA
- Inspection window material
- PS
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 541734. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
