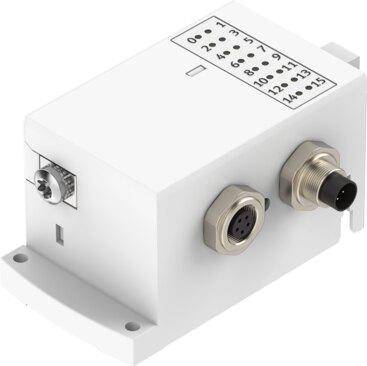

Reference imageConfirm configuration by manufacturer part number.
Festo
541975
Electrical interface CPVSC1-AE16-CPI
The Festo 541975 is an industrial component measuring 52 mm in width, 40 mm in height, and 70 mm in length, featuring an M9 5-pin fieldbus interface with a socket and plug. This device utilizes CP fieldbus communication and protocol with parameterization via CP protocol, supporting a maximum of 16 solenoid coils and providing device-specific diagnostics for valve manifold undervoltage. It offers reverse polarity protection for all electrical operating voltage connections, an electronics current consumption of 100 mA or less at nominal operating voltage, and an IP20 degree of protection according to IEC 60529 under an ambient operating temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541975
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541975.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 52 mm
- Height
- 40 mm
- Length
- 70 mm
- Fieldbus interface
- M9, 5-pin, socket and plug
- Device-specic diagnostics
- Valve manifold undervoltage
- Communication types
- CP eldbus
- Max. no. of solenoid coils
- 16
- Parameterization
- Parameterization via CP protocol
- Reverse polarity protection
- for all electrical operating voltage connections
- Protocol
- CP eldbus
- Current consumption at load nominal operating voltage
- Depending on pneumatic valve type and number of pneumatic valves
- Current consumption at nominal operating voltage
- Electronics: <= 100 mA
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...50 °C
- Relative air humidity
- 90% at 50 °C | Non-condensating
- Protection against direct and indirect contact
- PELV
- Degree of protection
- IP20 | As per IEC 60529
- Ambient temperature
- -5 °C...50 °C
- Certication
- c UL us - recognized (OL)
- Product weight
- 150 g
- LED display (bus-specic)
- CP: CP eldbus
- Type of mounting
- With through-hole
- Housing material
- PA-reinforced
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 541975. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
