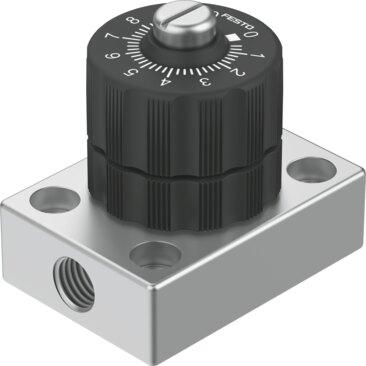

Name: Festo 542023 Precision one-way flow control valve GRP-160-1/8-AL
Brand: Festo

Precision one-way flow control valve GRP-160-1/8-AL

The Festo 542023 is a manual one-way flow control valve featuring G1/8 pneumatic connections on both ports and a rotary knob with a scale for the adjusting element. Constructed with a PA-reinforced housing and configured for sub-base mounting in any position, this component operates within a pressure range of 0 bar to 8 bar and ambient temperatures from -10 °C to 50 °C using compressed air or inert gases. It achieves a standard nominal flow rate of 75.8 l/min in the flow control direction and 245 l/min in the non-return direction, with LABS conformity under VDMA24364 Zone III and operation without oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 542023
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 542023.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: One-way ow control function
Pneumatic connection 1: G1/8
Pneumatic connection 2: G1/8
Actuation type: Manual
Adjusting element: Rotary knob with scale
Type of mounting: On sub-base
Standard nominal ow rate in ow control direction: 75.8 l/min
Standard nominal ow rate in non-return direction: 245 l/min
Operating pressure: 0 bar...8 bar
Ambient temperature: -10 °C...50 °C
Housing material: PA-reinforced
Mounting position: Any
Operating pressure from 2 to 1: 0 bar...8 bar
Standard nominal ow rate in ow control direction from 1bar to 0 bar: 38 l/min
Standard nominal ow rate in non-return direction from 1 bar to 0 bar: 25 l/min...90 l/min
Standard ow rate in ow control direction 6 -> 0 bar: 129 l/min
Standard ow rate in non-return direction at 6 -> 0 bar: 245 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [5:4:3] | Inert gases
Information on operating and pilot media: Operation with oil lubrication not possible
LABS (PWIS) conformity: VDMA24364 Zone III
Temperature of medium: -10 °C...50 °C
Product weight: 110 g
Note on materials: RoHS compliant
Material of sub-base: Wrought aluminum alloy
Seals material: NBR | PVC

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 542023. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
