Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

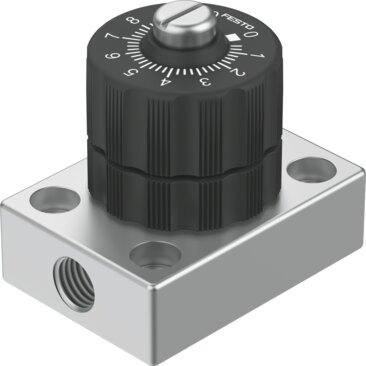

Reference imageConfirm configuration by manufacturer part number.
Festo
542024
Precision throttle valve GRPO-70-1/8-AL
The Festo part number 542024 is a flow control industrial component featuring G1/8 pneumatic connections on both ports and a manual actuation type utilizing a rotary knob with a scale. This sub-base mounted unit operates within a 0 bar to 8 bar pressure range and handles compressed air according to ISO 8573-1:2010 [5:4:3] or inert gases without oil lubrication. Constructed with a PA-reinforced housing and a product weight of 110 g, it provides a standard nominal flow rate of 40.7 l/min in the flow control direction. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 542024
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 542024.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Actuation type
- Manual
- Adjusting element
- Rotary knob with scale
- Type of mounting
- On sub-base
- Standard nominal ow rate in ow control direction
- 40.7 l/min
- Operating pressure
- 0 bar...8 bar
- Ambient temperature
- -10 °C...50 °C
- Housing material
- PA-reinforced
- Mounting position
- Any
- Operating pressure from 2 to 1
- 0 bar...0.5 bar
- Standard nominal ow rate in ow control direction from 1bar to 0 bar
- 19 l/min
- Standard ow rate in ow control direction 6 -> 0 bar
- 60 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [5:4:3] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -10 °C...50 °C
- Product weight
- 110 g
- Note on materials
- RoHS compliant
- Material of sub-base
- Wrought aluminum alloy
- Seals material
- NBR | PVC
- Material of screws
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 542024. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
