Reference imageConfirm configuration by manufacturer part number.
Festo
542025

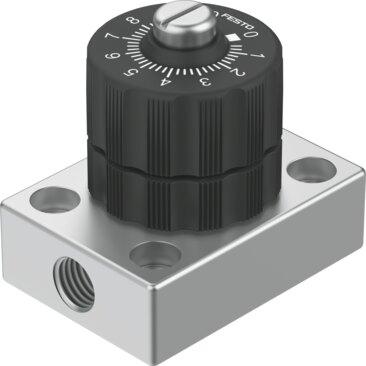

Precision throttle valve GRPO-160-1/8-AL
The Festo part number 542025 is a flow control valve featuring G1/8 pneumatic connections on both ports and a manual actuation type utilizing a rotary knob with a scale. Constructed with a PA-reinforced housing and a product weight of 110 g, this component supports an operating pressure range of 0 bar to 8 bar for compressed air as per ISO 8573-1:2010 [5:4:3] or inert gases within an ambient and medium temperature range of -10 °C to 50 °C. It provides a standard nominal flow rate of 75.8 l/min in the flow control direction and is designed for sub-base mounting in any position without the possibility of oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 542025
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 542025.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Actuation type
- Manual
- Adjusting element
- Rotary knob with scale
- Type of mounting
- On sub-base
- Standard nominal ow rate in ow control direction
- 75.8 l/min
- Operating pressure
- 0 bar...8 bar
- Ambient temperature
- -10 °C...50 °C
- Housing material
- PA-reinforced
- Mounting position
- Any
- Operating pressure from 2 to 1
- 0 bar...0.5 bar
- Standard nominal ow rate in ow control direction from 1bar to 0 bar
- 38 l/min
- Standard ow rate in ow control direction 6 -> 0 bar
- 129 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [5:4:3] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -10 °C...50 °C
- Product weight
- 110 g
- Note on materials
- RoHS compliant
- Material of sub-base
- Wrought aluminum alloy
- Seals material
- NBR | PVC
- Material of screws
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 542025. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
