Name: Festo 542257 Plug socket with cable NEBU-M12W8-K-5-N-LE8
Brand: Festo

Plug socket with cable NEBU-M12W8-K-5-N-LE8

The Festo 542257 is an industrial component weighing 292 g featuring an angled M12x1 A-coded 8-pin socket on the field device side and an open-ended 8-wire cable on the control side, conforming to EN 61076-2-101. This part operates within a DC and AC voltage range of 0 V to 30 V, supports a current rating of 2 A at 40° C, and provides a surge resistance of 0.8 kV with a rotatable screw-type lock mounting. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 542257
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 542257.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: EN 61076-2-101
Cable designation: Without label holder
Product weight: 292 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

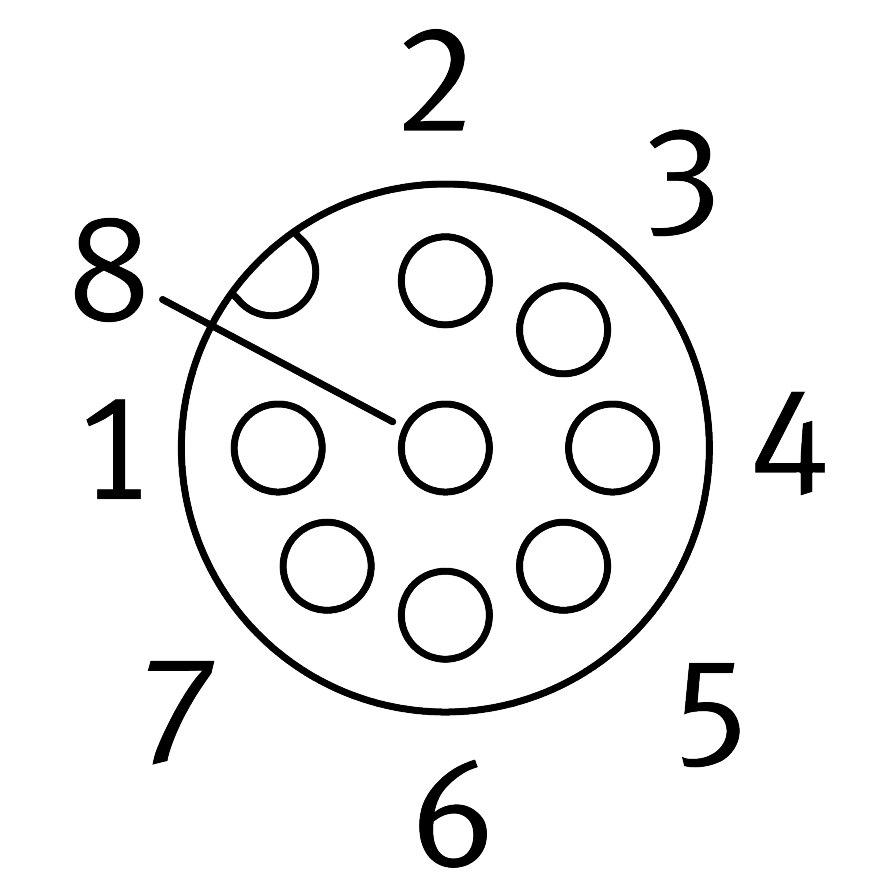

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 8
Electrical connection 1, occupied pins/wires: 8
Electrical connection 1, type of mounting: Screw-type lock | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 8
Electrical connection 2, occupied pins/wires: 8
DC operating voltage range: 0 V...30 V
Operating voltage range AC: 0 V...30 V
Current rating at 40° C: 2 A
Surge resistance: 0.8 kV
Shield: Yes
Cable length: 5 m
Cable characteristic: Standard
Bending radius, xed cable installation: 32 mm
Bending radius, exible cable installation: 66 mm
Cable diameter: 6.3 mm
Cable diameter tolerance: ± 0.2 mm
Cable design: 8 x 0.25 mm²
