Name: Festo 542286 Air preparation combination unit MSB6-1/2:C3J4-WP
Brand: Festo

Air preparation combination unit MSB6-1/2:C3J4-WP

The Festo 542286 industrial component is an MS-series size 6 structural assembly featuring an on/off valve and a filter regulator with a pressure gauge, operating within a pressure range of 2 bar to 12 bar and a regulation range of 0.5 bar to 12 bar. It provides a normal nominal flow rate of 4800 l/min utilizing a 5 µm filtration grade, a fully automatic condensate drain, and a plastic bowl guard while maintaining a vertical ±5° mounting position. This unit functions with constant output pressure, primary pressure compensation, secondary exhausting, and a return flow characteristic for compressed air as per ISO 8573-1:2010 [7:4:4] or inert gases. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 542286
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 542286.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 6
Series: MS
Actuator lock: Rotary knob with detent | can be closed with accessories
Mounting position: Vertical ±5°
Grade of ltration: 5 µm
Condensate drain: Fully automatic

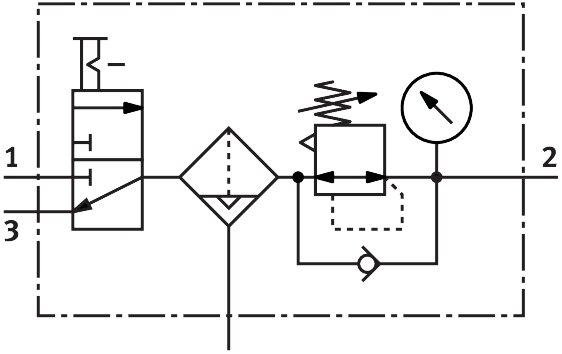

Structural design: On/oﬀ valve | Filter regulator with pressure gauge
Controller function: Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
Bowl guard: Plastic bowl guard
Pressure gauge: with pressure gauge
Operating pressure: 2 bar...12 bar
Pressure regulation range: 0.5 bar...12 bar
Normal nominal ow rate (normalized to DIN 1343): 4800 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C...60 °C
For use in the food industry: See supplementary material information
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [6:4:4]
Temperature of medium: 5 °C...60 °C
Ambient temperature: 5 °C...60 °C
Product weight: 1100 g
Type of mounting: With accessories
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2
Pneumatic connection 3: G1/2
