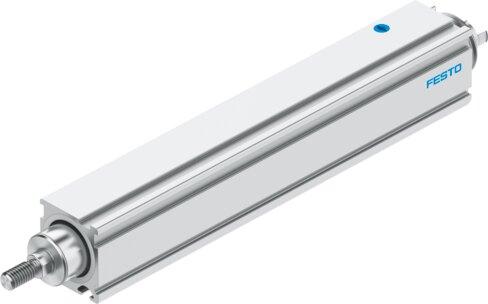

Reference imageConfirm configuration by manufacturer part number.
Festo
5428805
Electric cylinder EPCC-BS-25-25-2P-A
The Festo 5428805 is an electric cylinder featuring a size 25 design with a ball screw spindle type and a 25 mm stroke. It operates with a 2 mm/U spindle pitch, a 6 mm screw diameter, an M6 piston rod thread, and an external thread piston rod end incorporating a plain bearing-guide for torsion protection. This component accommodates stepper or servo motors up to a max rotational speed of 4000 rpm, delivering a max speed of 0.133 m/s, a max acceleration of 5 m/s², and a repetition accuracy of ±0.02 mm with position sensing via proximity switch. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5428805
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5428805.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke
- 25 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M6
- Reversing backlash
- 100 µm
- Screw diameter
- 6 mm
- Spindle pitch
- 2 mm/U
- Max. angle of rotation of the piston rod +/-
- 1 deg
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder | With ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 5 m/s²
- Max. rotational speed
- 4000 rpm
- Max. speed
- 0.133 m/s
- Max. homing speed
- 0.01 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 95% | Non-condensating
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5428805. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
