Festo
5428810

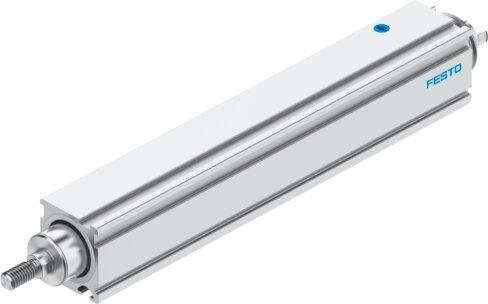

Electric cylinder EPCC-BS-25-150-2P-A
The Festo 5428810 is an electric cylinder featuring a ball screw structural design with a size 25 format, a 150 mm stroke, and a 0 mm stroke reserve. This component incorporates an M6 external thread piston rod, a 6 mm screw diameter, a 2 mm/U spindle pitch, and a plain bearing-guide providing torsion protection with a maximum piston rod rotation angle of plus or minus 1 degree. It supports stepper or servo motors up to a maximum rotational speed of 4000 rpm, achieving a maximum speed of 0.107 m/s, a 5 m/s² maximum acceleration, and a repetition accuracy of plus or minus 0.02 mm with 100 µm reversing backlash. Position sensing is accomplished via proximity switch in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5428810
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5428810.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke
- 150 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M6
- Reversing backlash
- 100 µm
- Screw diameter
- 6 mm
- Spindle pitch
- 2 mm/U
- Max. angle of rotation of the piston rod +/-
- 1 deg
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder | With ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 5 m/s²
- Max. rotational speed
- 4000 rpm
- Max. speed
- 0.107 m/s
- Max. homing speed
- 0.01 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 95% | Non-condensating
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5428810. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
