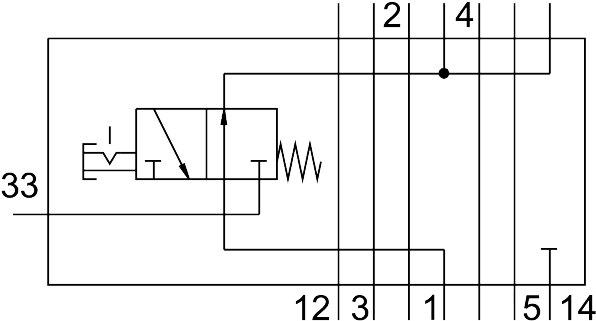

Reference imageConfirm configuration by manufacturer part number.
Festo
542885
Vertical pressure shut-off plate VABF-S4-1-L1D1-C
The Festo 542885 is a 26 mm industrial component featuring a die-cast aluminum housing with a product weight of 273 g and corrosion resistance class CRC 0. Built on the ISO 15407-2 norm, it supports vertical stacking mounting on a manifold sub-base or individual sub-base in any mounting position with IP65 and NEMA 4 degrees of protection. This unit operates with compressed air as per ISO 8573-1:2010 [7:4:4] at an operating pressure up to 1 MPa (10 bar) and ambient temperatures ranging from -5 °C to 50 °C, carrying CE and UKCA markings under electrical equipment directives. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 542885
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 542885.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 26 mm
- Based on norm
- ISO 15407-2
- Mounting position
- Any
- Operating pressure
- 1 MPa | 10 bar
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 273 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 542885. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
