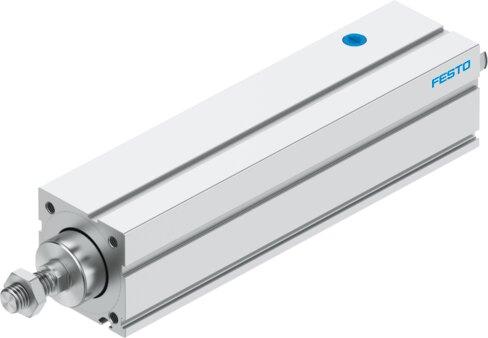

Reference imageConfirm configuration by manufacturer part number.
Festo
5428867
Electric cylinder EPCC-BS-45-300-3P-A
The Festo 5428867 is an electric cylinder featuring a ball screw structural design with a size 45 footprint, a 300 mm stroke, and a 0 mm stroke reserve. This component incorporates a plain bearing-guide for torsion protection, an M10x1.25 external piston rod thread, a 10 mm screw diameter, and a 3 mm/U spindle pitch, supporting a maximum rotational speed of 3600 rpm and a maximum speed of 0.18 m/s. Compatible with stepper and servo motors, it achieves a repetition accuracy of ±0.02 mm, a reversing backlash of 100 µm, a maximum acceleration of 5 m/s², and position sensing via proximity switch in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5428867
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5428867.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 45
- Stroke
- 300 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M10x1.25
- Reversing backlash
- 100 µm
- Screw diameter
- 10 mm
- Spindle pitch
- 3 mm/U
- Max. angle of rotation of the piston rod +/-
- 1 deg
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder | With ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 5 m/s²
- Max. rotational speed
- 3600 rpm
- Max. speed
- 0.18 m/s
- Max. homing speed
- 0.01 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 95% | Non-condensating
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
