Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

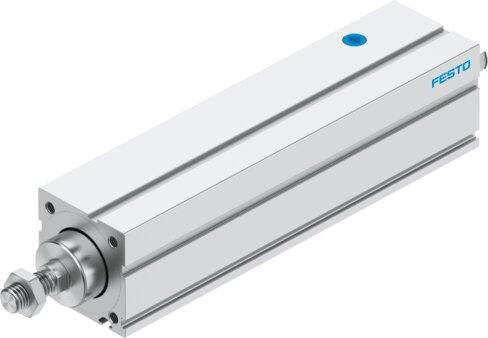

Reference imageConfirm configuration by manufacturer part number.
Festo
5428874
Electric cylinder EPCC-BS-45-175-10P-A
This Festo electric cylinder, part number 5428874, features a size 45 structural design equipped with a ball screw, a 175 mm stroke, and a 10 mm spindle pitch. The unit incorporates a plain bearing-guide limiting piston rod rotation to +/- 1 degree, an M10x1.25 external thread piston rod end, and a 10 mm screw diameter. Operating with either a stepper or servo motor, it achieves a maximum speed of 0.6 m/s, a maximum rotational speed of 3600 rpm, a repetition accuracy of ±0.02 mm, and a reversing backlash of 100 µm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5428874
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5428874.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 45
- Stroke
- 175 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M10x1.25
- Reversing backlash
- 100 µm
- Screw diameter
- 10 mm
- Spindle pitch
- 10 mm/U
- Max. angle of rotation of the piston rod +/-
- 1 deg
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder | With ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 3600 rpm
- Max. speed
- 0.6 m/s
- Max. homing speed
- 0.01 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 95% | Non-condensating
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5428874. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
