542890

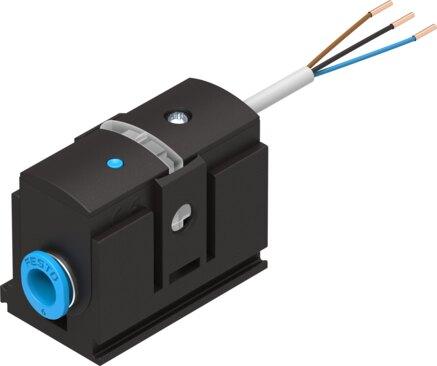

Name: Festo 542890 Pressure sensor SDE5-D10-O-Q6E-P-K
Brand: Festo

Pressure sensor SDE5-D10-O-Q6E-P-K

The Festo 542890 is a piezoresistive pressure sensor engineered to measure relative pressure from an initial value of 0 bar to an end value of 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4], with lubricated operation possible within a medium and ambient temperature range of 0 °C to 50 °C. It features a PNP switching output with a threshold value, fixed hysteresis, N.O. contact, a maximum output current of 100 mA, short-circuit protection, and a DC operating voltage range of 15 V to 30 V, delivering a repetition accuracy of 0.3 %FS and a temperature coefficient of 0.05 %FS/K. This industrial component carries RCM compliance, c UL us recognition, CE marking per EU EMC and RoHS directives, UKCA marking to UK EMC and RoHS instructions, and RoHS material compliance. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 542890
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 542890.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Measured variable: Relative pressure
Method of measurement: Piezoresistive pressure sensor
Pressure measuring range initial value: 0 bar
Pressure measuring range end value: 10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible
Temperature of medium: 0 °C...50 °C
Ambient temperature: 0 °C...50 °C
Repetition accuracy in ± %FS: 0.3 %FS
Temperature co-eﬃcient in ± %FS/K: 0.05 %FS/K
Switching output: PNP
Switching function: Threshold value with xed hysteresis
Switching element function: N.O. contact
Max. output current: 100 mA
Short-circuit protection: Yes
DC operating voltage range: 15 V...30 V
Reverse polarity protection: for all electrical connections
Electrical connection: 3-wire | Cable | As per EN 60947-5-2
Cable length: 2.5 m
Type of mounting: With accessories
Mounting position: Any
Pneumatic connection: QS-6
Product weight: 47 g
Housing material: PA

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 542890. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
