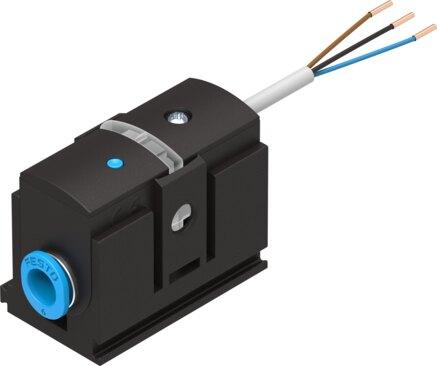

Name: Festo 542895 Pressure sensor SDE5-D10-C-Q6E-P-K
Brand: Festo

Pressure sensor SDE5-D10-C-Q6E-P-K

The Festo 542895 is a piezoresistive pressure sensor engineered to measure relative pressure across a range of 0 bar to 10 bar using compressed air as per ISO 8573-1:2010 [7:4:4]. This component features a DC operating voltage range of 15 V to 30 V, a PNP switching output with a threshold value and fixed hysteresis, an NC contact switching element function, and a maximum output current of 100 mA with short-circuit protection. Certified with the RCM compliance mark and c UL us recognition, the unit adheres to EU and UK directives for EMC and RoHS, and operates within a medium and ambient temperature range of 0 °C to 50 °C while delivering a repetition accuracy of 0.3 %FS and a temperature coefficient of 0.05 %FS/K. Submit your exact part number, quantity, and application requirements to receive an official quote for this part.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 542895
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 542895.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Measured variable: Relative pressure
Method of measurement: Piezoresistive pressure sensor
Pressure measuring range initial value: 0 bar
Pressure measuring range end value: 10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible
Temperature of medium: 0 °C...50 °C
Ambient temperature: 0 °C...50 °C
Repetition accuracy in ± %FS: 0.3 %FS
Temperature co-eﬃcient in ± %FS/K: 0.05 %FS/K
Switching output: PNP
Switching function: Threshold value with xed hysteresis
Switching element function: NC contact
Max. output current: 100 mA
Short-circuit protection: Yes
DC operating voltage range: 15 V...30 V
Reverse polarity protection: for all electrical connections
Electrical connection: 3-wire | Cable | As per EN 60947-5-2
Cable length: 2.5 m
Type of mounting: With accessories
Mounting position: Any
Pneumatic connection: QS-6
Product weight: 47 g
Housing material: PA

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 542895. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
