Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

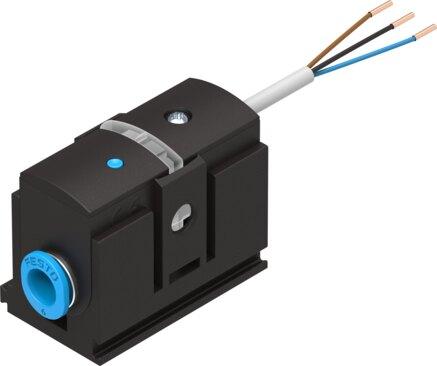

Reference imageConfirm configuration by manufacturer part number.
Festo
542896
Pressure sensor SDE5-D10-C3-Q6E-P-K
The Festo 542896 is a piezoresistive pressure sensor designed to measure relative pressure across a 0 bar to 10 bar range utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with lubricated operation possible at a medium and ambient temperature of 0 °C to 50 °C. It features a DC operating voltage range of 15 V to 30 V, a PNP switching output with a window comparator switching function and NC contact element function, short-circuit protection, a maximum output current of 100 mA, a repetition accuracy of 0.3 %FS, and a temperature coefficient of 0.05 %FS/K. This component complies with RCM, c UL us recognition, and CE and UKCA directives for EMC and RoHS, and uses RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 542896
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 542896.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 bar
- Pressure measuring range end value
- 10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.05 %FS/K
- Switching output
- PNP
- Switching function
- Window comparator
- Switching element function
- NC contact
- Max. output current
- 100 mA
- Short-circuit protection
- Yes
- DC operating voltage range
- 15 V...30 V
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-wire | Cable | As per EN 60947-5-2
- Cable length
- 2.5 m
- Type of mounting
- With accessories
- Mounting position
- Any
- Pneumatic connection
- QS-6
- Product weight
- 47 g
- Housing material
- PA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 542896. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
