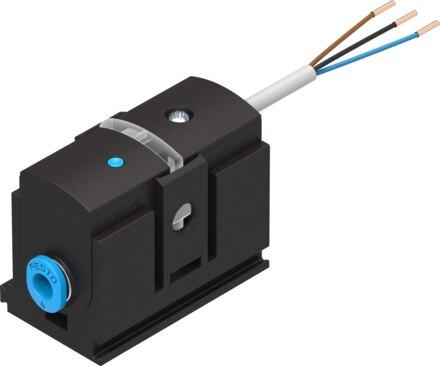

Reference imageConfirm configuration by manufacturer part number.
Festo
542901
Pressure sensor SDE5-D10-FP-Q4E-P-K
The Festo 542901 is a piezoresistive pressure sensor engineered to measure relative pressure from an initial value of 0 bar to an end value of 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. This industrial component operates within a medium and ambient temperature range of 0 °C to 50 °C, featuring a DC operating voltage range of 15 V to 30 V and a PNP switching output with short-circuit protection. It carries RCM compliance, c UL us recognition, and CE and UKCA markings in accordance with applicable EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 542901
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 542901.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 bar
- Pressure measuring range end value
- 10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.05 %FS/K
- Switching output
- PNP
- Switching function
- Freely programmable
- Switching element function
- Switchable
- Max. output current
- 100 mA
- Short-circuit protection
- Yes
- DC operating voltage range
- 15 V...30 V
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-wire | Cable | As per EN 60947-5-2
- Cable length
- 2.5 m
- Type of mounting
- With accessories
- Mounting position
- Any
- Pneumatic connection
- QS-4
- Product weight
- 47 g
- Housing material
- PA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 542901. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
