Festo
543107

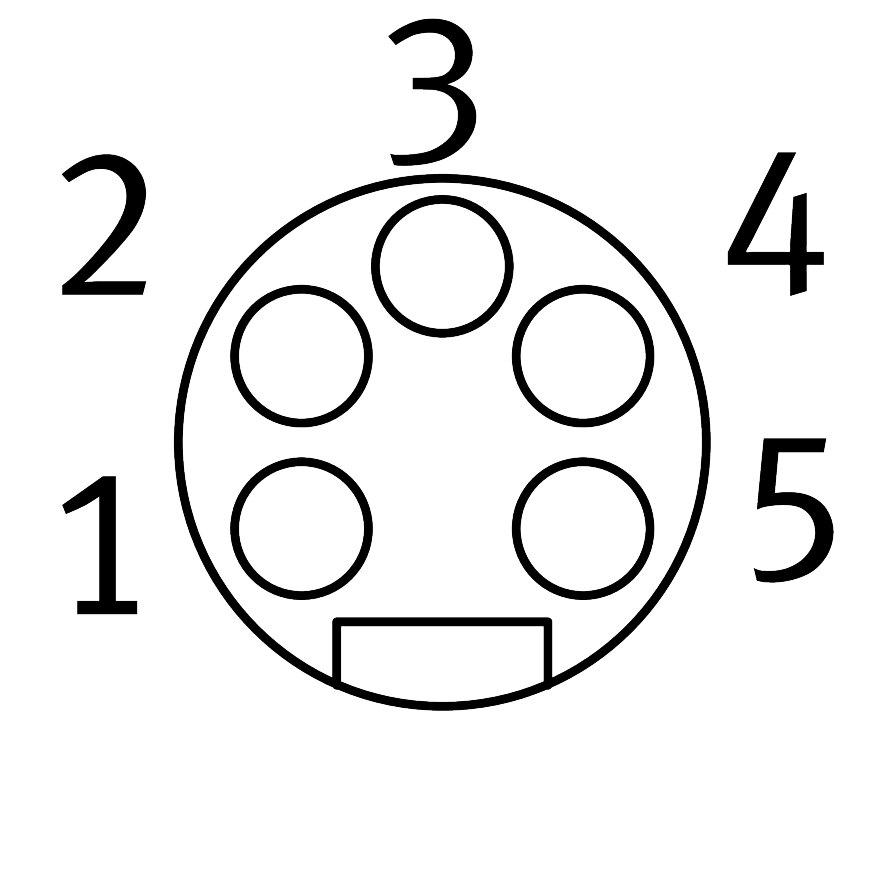

Power supply socket NECU-G78G5-C2
The Festo part number 543107 is an industrial component featuring a straight 7/8-inch, 5-pin socket electrical connection 1 with NFPA/T3.5.29 R1-2003 plug coding and a screw terminal electrical connection 2. Weighing 50 g, this unit operates within an AC and DC voltage range of 0 V to 250 V, a current rating of 8 A, a surge resistance of 2.5 kV, and is based on the EN 61984 norm with a c CSA us (OL) certification. It provides an IP67 degree of protection, accommodates approved cable diameters from 6 mm to 12 mm with a 1.5 mm² connection cross section, and functions in ambient temperatures from -25 °C to 80 °C. The device complies with the EU low voltage directive and UKCA electrical equipment instructions, features VDMA24364-B2-L LABS conformity, RoHS compliance, contamination level 3, and a corrosion resistance class of 1. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543107
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543107.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61984
- Certication
- c CSA us (OL)
- Product weight
- 50 g
- Electrical connection 1
- Straight socket, 7/8", 5-pin
- Plug coding
- NFPA/T3.5.29 R1-2003
- Electrical connection 2
- Screw terminal
- DC operating voltage range
- 0 V...250 V
- Operating voltage range AC
- 0 V...250 V
- Current rating
- 8 A
- Surge resistance
- 2.5 kV
- Approved cable diameter
- 6 mm...12 mm
- Connection cross section
- 1.5 mm²
- Degree of protection
- IP67
- Ambient temperature
- -25 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA
- Housing colour
- Black
- Material of union nut
- Die-cast zinc, nickel-plated
- Seals material
- FPM | NBR
- Material of pin contacts
- Gold-plated copper alloy
