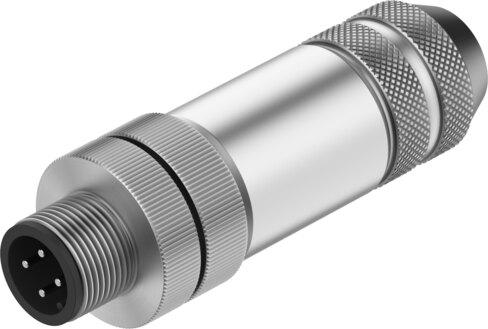

Name: Festo 543109 Plug NECU-M-S-D12G4-C2-ET
Brand: Festo

Plug NECU-M-S-D12G4-C2-ET

The Festo 44.3 g industrial component with part number 543109 features an M12x1 straight 4-pin D-coded shieldable plug and a shieldable screw terminal built upon a nickel-plated die-cast zinc housing. Operating across a 0 V to 250 V DC and AC range with a 2.5 kV surge resistance and DIN EN 50173/CAT 5 transmission characteristics, this EN 61076-2-101 and EN 61984 compliant part accommodates 6 mm to 8 mm cables and 0.14 mm² to 0.75 mm² connection cross sections. It maintains an IP67 degree of protection within an ambient temperature range of -25 °C to 85 °C, featuring VDMA24364-B2-L LABS conformity, RoHS compliance, contamination level 3, and CRC 1 low corrosion stress while carrying CE and UKCA markings. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 543109
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 543109.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 61076-2-101 | EN 61984
Product weight: 44.3 g
Electrical connection 1: Straight plug, M12x1, 4-pin, D-coded, shieldable
Plug coding: D
Electrical connection 2: Screw terminal, can be shielded
DC operating voltage range: 0 V...250 V
Operating voltage range AC: 0 V...250 V
Surge resistance: 2.5 kV
Transmission characteristics: DIN EN 50173/CAT 5
Approved cable diameter: 6 mm...8 mm
Connection cross section: 0.14 mm²...0.75 mm²
Degree of protection: IP67
Ambient temperature: -25 °C...85 °C
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Contamination level: 3
Corrosion resistance class (CRC): 1 - Low corrosion stress
Housing material: Die-cast zinc, nickel-plated
Material of pin contacts: Gold-plated brass
