Festo
543147

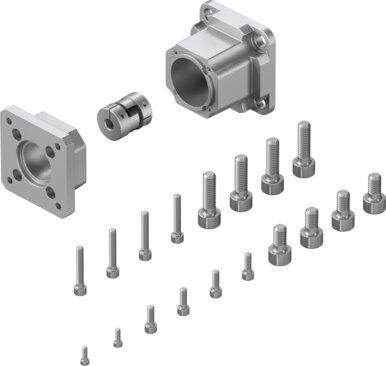

Axial kit EAMM-A-D32-40A
The Festo part number 543147 is an industrial component featuring a nominal length of 39.8 mm, a mass moment of inertia of 0.28 kgmm², and a product weight of 130 g with RoHS compliant materials. Engineered with actuator interface code D32 and motor input interface code 40A, it supports a transferable torque of 1.6 Nm and a maximum rotational speed of 10000 rpm in any mounting position. The unit provides IP40 protection, VDMA24364-B2-L LABS conformity, and operates within an ambient temperature range of -10 °C to 60 °C, relative air humidity from 0 to 95%, and storage temperatures between -25 °C and 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543147
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543147.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 39.8 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 0.28 kgmm²
- Transferable torque
- 1.6 Nm
- Product weight
- 130 g
- Interface code, actuator
- D32
- Interface code, motor in
- 40A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543147. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
