Festo
543161

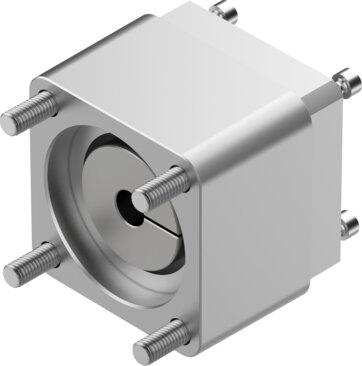

Axial kit EAMM-A-D60-70A
The Festo industrial component, part number 543161, features a nominal length of 62.5 mm, a product weight of 820 g, and a mass moment of inertia of 34.8 kgmm² with RoHS-compliant materials. It supports any mounting position, a maximum rotational speed of 6000 rpm, and a transferable torque of 17 Nm, operating within an ambient temperature range of -10 °C to 60 °C and storage temperatures from -25 °C to 60 °C. Rated to IP40 with VDMA24364-B2-L LABS conformity and 0 to 95% relative air humidity tolerance, this unit integrates actuator interface codes D60 and D60C alongside a 70A motor-in interface. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543161
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543161.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 62.5 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 820 g
- Interface code, actuator
- D60 | D60C
- Interface code, motor in
- 70A
- Note on materials
- RoHS compliant
