Festo
543162

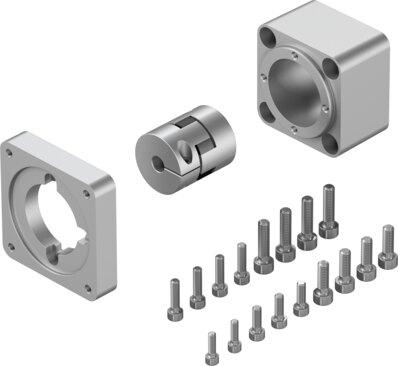

Axial kit EAMM-A-D60-87A
The Festo 543162 industrial component is an actuator and motor interface part featuring a nominal length of 65 mm, a mass moment of inertia of 34.8 kgmm², and a transferable torque of 17 Nm. It accommodates a maximum rotational speed of 6000 rpm, utilizes actuator interface codes D60 and D60C alongside motor interface code 87A, and weighs 960 g with RoHS-compliant materials. Featuring an IP40 degree of protection and VDMA24364-B2-L LABS conformity, this hardware operates within an ambient temperature range of -10 °C to 60 °C, withstands storage temperatures from -25 °C to 60 °C, tolerates 0 to 95% relative air humidity, and supports mounting in any position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543162
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543162.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 65 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 960 g
- Interface code, actuator
- D60 | D60C
- Interface code, motor in
- 87A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543162. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
