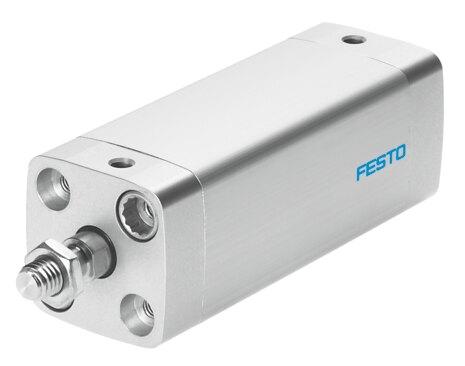

Reference imageConfirm configuration by manufacturer part number.
Festo
543305
Compact cylinder CDC-20- -
The Festo 543305 is a double-acting industrial component featuring a 20 mm piston diameter, an adjustable stroke from 1 mm to 300 mm, and compliance with the ISO 21287 norm. Built with elastic cushioning rings at both ends, this piston and piston rod assembly operates within a pressure range of 0.08 MPa to 1 MPa and handles ambient temperatures from -20 °C to 120 °C. It provides a corrosion resistance class of 3 for high corrosion stress and supports compressed air operation according to ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543305
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543305.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...300 mm
- Piston diameter
- 20 mm
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod
- Variants
- Extended external thread piston rod | Special thread on piston rod | Extended piston rod | Through piston rod | Heat-resistant seals max. 120°C | Piston rod at one end
- Operating pressure
- 0.08 MPa...1 MPa | 0.8 bar...10 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L | VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...120 °C
- Theoretical force at 6 bar, retracting
- 141 N
- Theoretical force at 6 bar, advancing
- 141 N...188 N
- Type of mounting
- Alternatively: | With through-hole | With internal thread
- Pneumatic connection
- M5
- Cover material
- Wrought aluminum alloy | Anodized
- Piston rod material
- high-alloy stainless steel
- Material of cylinder barrel
- Wrought aluminum alloy
