Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

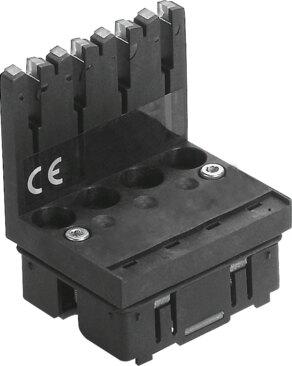

Reference imageConfirm configuration by manufacturer part number.
Festo
543332
Electronics module VMPA2-FB-EMS-D2-4
The Festo 543332 is an industrial component featuring a POM housing with a product weight of 20 g and corrosion resistance class 1 for installed conditions, along with RoHS compliance and VDMA24364-B1/B2-L LABS conformity. This unit supports a maximum of 2 valve positions and 4 solenoid coils, exhibiting an intrinsic current consumption of 8 mA at operating voltage and 3 mA at load voltage, with a nominal pick-up current of 99 mA up to 24 ms and a reduced current of 18 mA thereafter. Comprehensive diagnostics include condition monitoring, wire break detection per valve coil, and short circuit or undervoltage detection of pneumatic valves. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543332
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543332.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diagnostics
- Condition monitoring | Wire break per valve coil | Short circuit of pneumatic valves | Undervoltage of pneumatic valves
- Max. no. of valve positions
- 2
- Max. no. of solenoid coils
- 4
- Intrinsic current consumption at load voltage
- 3 mA
- Intrinsic current consumption at operating voltage
- 8 mA
- Nominal pick-up current per solenoid coil
- 99 mA up to 24 ms
- Nominal current with current reduction
- 18 mA after 24 ms
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (installed)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 20 g
- Housing material
- POM
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543332. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
