543344

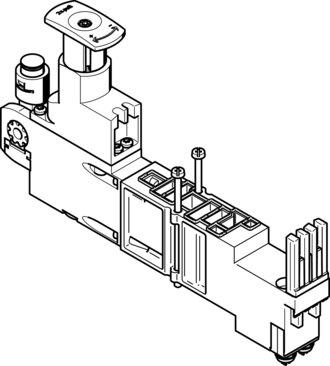

Name: Festo 543344 Regulator plate VMPA2-B8-R3C2-C-10
Brand: Festo

Regulator plate VMPA2-B8-R3C2-C-10

The Festo 543344 is an industrial pneumatic vertical stacking pressure regulator featuring a width of 21 mm, a pressure regulation range of 2 bar to 8.5 bar, and an inlet pressure range of 0.5 bar to 10 bar. It provides a constant output pressure with secondary exhausting, supports any mounting position on a manifold sub-base, and accommodates an optional pressure gauge with a retaining clamp. Built with NBR seals, a PA operator panel, and a low corrosion stress rating of CRC 1, this IP65-rated component operates on compressed air per ISO 8573-1:2010 [7:4:4] with a maximum tightening torque of 0.65 Nm and a weight of 180 g. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 543344
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 543344.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 21 mm
Mounting position: Any
Pneumatic vertical stacking: Pressure regulator for 4
Controller function: Constant output pressure | With secondary exhausting
Optional pressure gauge: Possible
Pressure regulation range: 2 bar...8.5 bar
Inlet pressure 1: 0.5 bar...10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | As per IEC 60529
Ambient temperature: -5 °C...50 °C
Max. tightening torque: 0.65 Nm
Product weight: 180 g
Vertical stacking mounting type: On manifold sub-base
Pressure gauge connection: With retaining clamp
Note on materials: RoHS compliant
Material of operator panel: PA
Seals material: NBR
Controller housing material: PA

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 543344. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
