Festo
543347

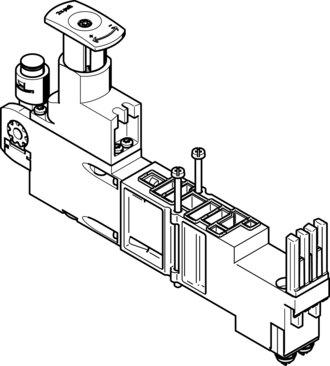

Regulator plate VMPA2-B8-R6C2-C-10
The Festo 543347 is an industrial component featuring a width of 21 mm, a product weight of 180 g, and a low corrosion stress classification of CRC 1 with RoHS compliance. Designed for vertical stacking on a manifold sub-base in any mounting position, this pressure regulator for two reversible circuits delivers a constant output pressure with secondary exhausting across a regulation range of 0.5 bar to 8.5 bar. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] at inlet pressures from 0.5 bar to 10 bar, accommodating ambient temperatures from -5 °C to 50 °C while maintaining an IP65 degree of protection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543347
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543347.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 21 mm
- Mounting position
- Any
- Pneumatic vertical stacking
- Pressure regulator for 2 reversible
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Pressure regulation range
- 0.5 bar...8.5 bar
- Inlet pressure 1
- 0.5 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | As per IEC 60529
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque
- 0.65 Nm
- Product weight
- 180 g
- Vertical stacking mounting type
- On manifold sub-base
- Pressure gauge connection
- With retaining clamp
- Note on materials
- RoHS compliant
- Material of operator panel
- PA
- Seals material
- NBR
- Controller housing material
- PA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543347. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
