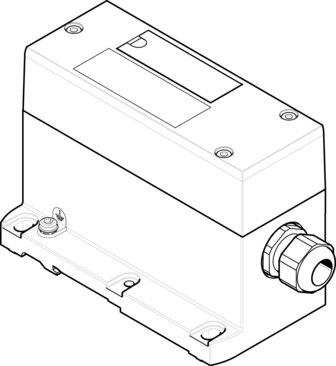

Reference imageConfirm configuration by manufacturer part number.
Festo
543413
Multi-pin node VABE-S6-1LF-C-M1-C36N
Manufactured by Festo with part number 543413, this industrial component features a die-cast aluminum housing with a PA cover and supports multi-pin electrical actuation via a socket or terminal strip. It accommodates up to 16 valve positions for double-solenoid valves or 32 for single-solenoid valves at a nominal operating voltage of 24 VDC with a max residual current of 6 A and a current rating of 1 A at 40° C. The unit complies with EN 61984, carries CE and UKCA markings, provides IP65 and NEMA 4 protection, and operates within an ambient temperature range of -5 °C to 50 °C with a weight of 540 g. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543413
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543413.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61984
- Mounting position
- Any
- Max. no. of valve positions
- 16 for double-solenoid valves | 32 for single-solenoid valves
- Max. residual current
- 6 A
- Nominal operating voltage DC
- 24 V
- Surge resistance
- 1.5 kV
- Current rating at 40° C
- 1 A
- Contamination level
- 3
- Permissible voltage uctuations
- +/- 10%
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 540 g
- Electrical actuation
- Multi-pin
- Electrical connection
- Socket/terminal strip
- Cover material
- PA
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543413. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
