Festo
543487

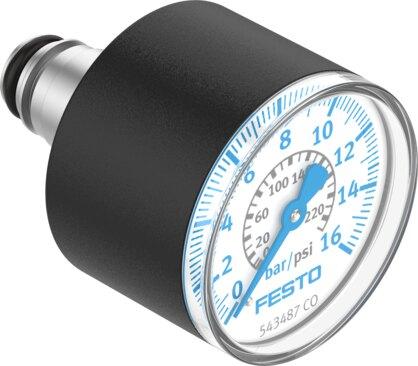

Pressure gauge PAGN-26-16-P10
The Festo part number 543487 is a Bourdon tube pressure gauge featuring an in-line installation design with a nominal size of 26 and a centered rear-side 10 mm cartridge pneumatic connection. Constructed with a PA housing, brass media-contacting components, and a brass screwed plug, this RoHS-compliant device supports a display and operating pressure range of 0 bar to 16 bar (0 psi to 232 psi) for neutral liquids and inert gases excluding acetylene and oxygen. It operates within medium and ambient temperatures of -20 °C to 60 °C, achieves an IP43 and NEMA 4 degree of protection, conforms to VDMA24364-B1/B2-L LABS standards, and provides Zone 1, 2, 21, and 22 ATEX explosion prevention and protection in accordance with its certificate. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543487
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543487.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...16 bar | 0 psi...232 psi
- Pressure gauge nominal size
- 26
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1.6 MPa | 0 bar...16 bar | 0 psi...232 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 4
- Degree of protection
- IP43 | NEMA 4
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- Cartridge 10 mm
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- PA
- Inspection window material
- PS
