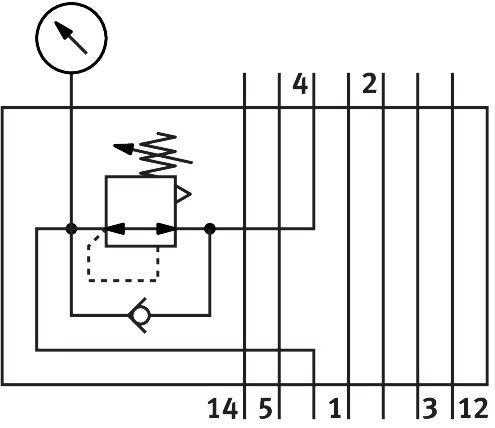

Reference imageConfirm configuration by manufacturer part number.
Festo
543528
Regulator plate VABF-S3-2-R3C2-C-6
The Festo 543528 is an ISO 15407-1 compliant industrial component featuring an 18 mm width and a pneumatic vertical stacking pressure regulator for port 4 with constant output pressure and secondary exhausting. Weighing 245 g, this device operates within a pressure regulation range of 2 bar to 6 bar (0.2 MPa to 0.6 MPa, 29 psi to 87 psi) and an inlet pressure range of 0.5 bar to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. It offers an IP65 and NEMA 4 degree of protection, an ambient temperature range of -5 °C to 50 °C, and mounts on a manifold sub-base or individual sub-base with any mounting position. Submit the exact part number, quantity, and application requirements for an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543528
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543528.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 18 mm
- Based on norm
- ISO 15407-1
- Mounting position
- Any
- Pneumatic vertical stacking
- Pressure regulator for 4
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Pressure regulation range MPa
- 0.2 MPa...0.6 MPa
- Pressure regulation range
- 2 bar...6 bar
- Pressure regulation range psi
- 29 psi...87 psi
- Inlet pressure 1
- 0.5 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 245 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pressure gauge connection
- With retaining clamp
- Note on materials
- RoHS compliant
- Material of operator panel
- PA
- Controller housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543528. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
