Festo
543530

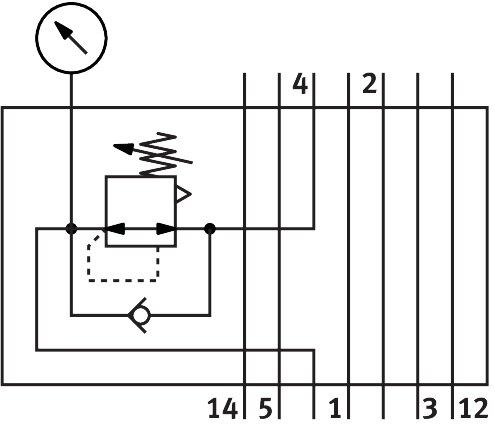

Regulator plate VABF-S3-2-R3C2-C-10
The Festo 543530 is an 18 mm industrial component based on ISO 15407-1 with any mounting position, featuring a pneumatic vertical stacking pressure regulator for 4 that provides constant output pressure with secondary exhausting across a regulation range of 0.2 MPa to 0.85 MPa (2 bar to 8.5 bar, 29 psi to 123.25 psi). It accepts an inlet pressure of 0.5 bar to 10 bar using compressed air as per ISO 8573-1:2010 [7:4:4] operating medium, supports oil lubrication operation, and weighs 245 g with IP65 and NEMA 4 degrees of protection for ambient temperatures from -5 °C to 50 °C. Designed with 0 - No corrosion stress resistance class, VDMA24364-B1/B2-L LABS conformity, RoHS compliant materials, a pressure gauge connection with a retaining clamp, and optional pressure gauge capability, it mounts on a manifold sub-base or individual sub-base. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543530
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543530.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 18 mm
- Based on norm
- ISO 15407-1
- Mounting position
- Any
- Pneumatic vertical stacking
- Pressure regulator for 4
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Pressure regulation range MPa
- 0.2 MPa...0.85 MPa
- Pressure regulation range
- 2 bar...8.5 bar
- Pressure regulation range psi
- 29 psi...123.25 psi
- Inlet pressure 1
- 0.5 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 245 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pressure gauge connection
- With retaining clamp
- Note on materials
- RoHS compliant
- Material of operator panel
- PA
- Controller housing material
- Die-cast aluminum
