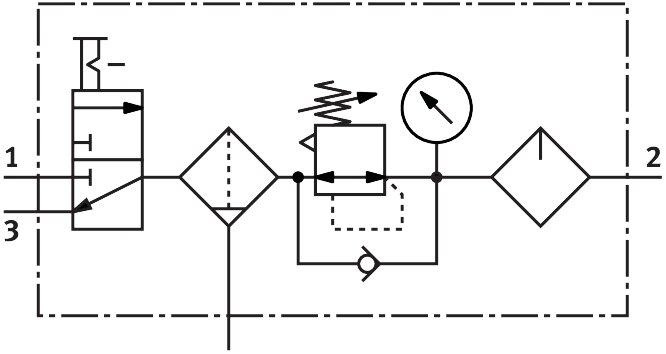

Reference imageConfirm configuration by manufacturer part number.
Festo
543588
Air preparation combination unit MSB6N-1/2:C3J3M1-WP
The Festo part number 543588 is an MS series size 6 industrial component featuring an on/off valve, a filter regulator with a pressure gauge, and a standard mist lubricator with a 5 µm filtration grade and manual rotating condensate drain. It operates within a pressure range of 1.5 bar to 18 bar, provides a pressure regulation range of 0.5 bar to 12 bar, and delivers a normal nominal flow rate of 3000 l/min using compressed air or inert gases. The unit includes a plastic bowl guard, a rotary knob actuator lock with detent that can be closed with accessories, and maintains a vertical mounting position within ±5° with a moderate corrosion resistance class of 2. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543588
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543588.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 5 µm
- Condensate drain
- Manual, rotating
- Structural design
- On/off valve | Filter regulator with pressure gauge | Standard mist lubricator
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Bowl guard
- Plastic bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 1.5 bar...18 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 3000 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [6:4:-]
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1750 g
- Type of mounting
- With accessories
- Pneumatic connection 1
- 1/2 NPT
- Pneumatic connection 2
- 1/2 NPT
