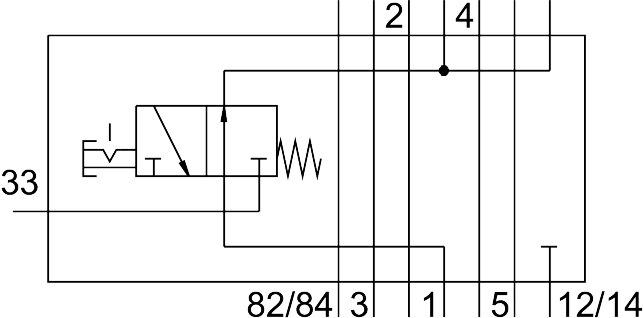

Reference imageConfirm configuration by manufacturer part number.
Festo
543601
Vertical pressure shut-off plate VABF-S3-2-L1D1-C
The Festo part number 543601 is an industrial component featuring an 18 mm width and die-cast aluminum housing built to ISO 15407-1 norms. This pneumatic vertical stacking shut-off for 1 operates at pressures from -0.9 bar to 10 bar with a normal nominal flow rate of 400 l/min using compressed air as per ISO 8573-1:2010 [7:4:4]. It offers IP65 and NEMA 4 protection, a product weight of 212 g, and can be mounted in any position on a manifold or individual sub-base. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543601
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543601.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 18 mm
- Based on norm
- ISO 15407-1
- Mounting position
- Any
- Pneumatic vertical stacking
- Shut-off for 1
- Operating pressure
- -0.9 bar...10 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 400 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 212 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543601. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
