Festo
543602

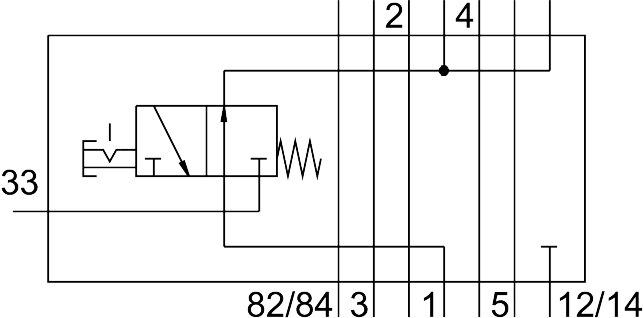

Vertical pressure shut-off plate VABF-S3-1-L1D1-C
The Festo 543602 is an industrial component featuring a width of 26 mm, a product weight of 286 g, and a die-cast aluminum housing constructed in compliance with RoHS standards. Built upon the ISO 15407-1 norm with IP65 and NEMA 4 protection, this unit delivers a normal nominal flow rate of 800 l/min across an operating pressure range of -0.9 bar to 10 bar utilizing compressed air per ISO 8573-1:2010 [7:4:4]. It provides pneumatic vertical stacking with a shut-off for 1 and operates within an ambient temperature range of -5 °C to 50 °C when mounted on a manifold sub-base or individual sub-base in any position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543602
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543602.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 26 mm
- Based on norm
- ISO 15407-1
- Mounting position
- Any
- Pneumatic vertical stacking
- Shut-off for 1
- Operating pressure
- -0.9 bar...10 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 286 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543602. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
