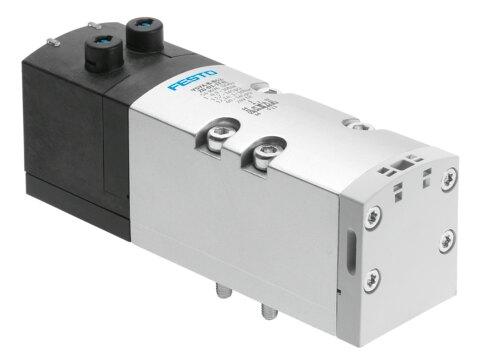

Name: Festo 543696 Air solenoid valve VSVA-B-B52-ZD-D1-1T1L
Brand: Festo

Air solenoid valve VSVA-B-B52-ZD-D1-1T1L

The Festo 543696 is a 5/2-way bistable industrial component featuring an electrical actuation type, a piston gate valve structural design, and a soft sealing principle across a 42 mm width. Operating on 24V DC with an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a normal nominal flow rate of 1300 l/min, this piloted valve provides an IP65 and NEMA 4 degree of protection alongside c UL us recognition. It incorporates adjustable exhaust air functions, an LED signal status display, and flexible mounting capabilities with external pilot air supply ports. Submit the exact part number, quantity, and application requirements to receive a quote for this item.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 543696
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 543696.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Width: 42 mm
Normal nominal ow rate (normalized to DIN 1343): 1300 l/min
Pneumatic working port: Sub-base, size 1 as per ISO 5599-2 | G3/8
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Certication: c UL us - recognized (OL)
Degree of protection: IP65 | NEMA 4
Exhaust air function: Adjustable | Via throttle plate | Via individual sub-base
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting | Covered
Type of control: Piloted
Pilot air supply port: External
Flow direction: Any
Signal status display: LED
Pilot pressure MPa: 0.3 MPa...1 MPa
Pilot pressure: 3 bar...10 bar
Flow rate of pneumatic valve: 1800 l/min
Flow rate of pneumatic valve on individual sub-base: 1500 l/min
Optimized ow rate of pneumatic valve, pneumatically concatenated: 1860 l/min
Optimized ow rate of pneumatic valve pneumatically concatenated ow: 1300 l/min
Changeover time: 16 ms
Max. positive test pulse with 0 signal: 1400 µs

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 543696. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
