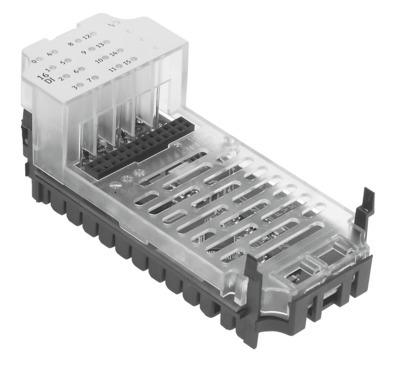

Reference imageConfirm configuration by manufacturer part number.
Festo
543815
Input module CPX-16DE
The Festo part number 543815 is an industrial component featuring 16 PNP inputs, IEC1131-T2 input characteristics, and a nominal DC operating voltage of 24 V within an 18 V to 30 V range. Measuring 50 mm by 107 mm by 50 mm and weighing 41 g, the unit is constructed from reinforced PA and PC housing materials with a CRC 1 corrosion resistance rating and VDMA24364-B2-L LABS conformity. It incorporates 1 group diagnostics and 16 channel status LED indicators, providing parameterizable input debounce time, signal extension, short-circuit response, and module monitoring while operating in ambient temperatures from -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543815
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543815.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- (incl. interlinking block and connection system) | 50 mm x 107 mm x 50 mm
- Product weight
- 41 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- Depending on terminal block
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (installed)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- PA-reinforced | PC
- LED indicators
- 1 group diagnostics | 16 channel status
- Diagnostics
- Short circuit/overload per channel
- Parameterization
- Input debounce time | Signal extension time | Response to short circuit | Module monitoring
- DC operating voltage range
- 18 V...30 V
- Nominal operating voltage DC
- 24 V
- Intrinsic current consumption at nominal operating voltage
- Type. 15 mA
- No. of inputs
- 16
- Input characteristics
- IEC1131-T2
- Switching level
- Signal 0: <= 5 V | Signal 1: >= 11 V
- Input switching logic
- PNP (positive switching)
- Input debounce time
- 3 ms (0.1 ms, 10 ms, 20 ms parameterizable)
- Max. residual current of inputs per module
- 1.8 A
- Electrical isolation between channels
- No
- Electrical isolation between channel and internal bus
- No
- Fuse protection (short circuit)
- Internal electronic fuse per module
