Festo
543821

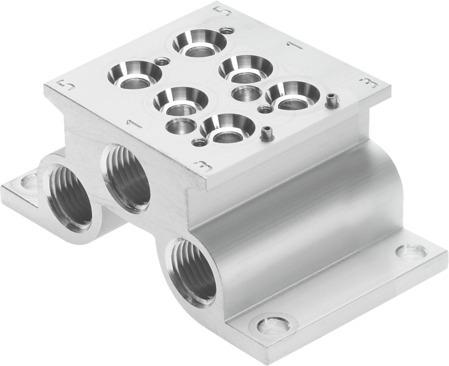

Manifold block CPE10-PRS-1/4-2
The Festo 543821 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 16 mm and a product weight of 131 g. It supports any mounting position via through-hole manifold block mounting and internal thread pneumatic valve mounting, accommodating up to two valve positions and two pressure zones with pneumatic connections G1/4 for ports 1, 3, and 5. Operating within a temperature range of -5 °C to 50 °C for both the medium and ambient environment, it withstands an operating pressure of -0.09 MPa to 1 MPa and a burst pressure of 5 MPa, while achieving a corrosion resistance class of CRC 2 and RoHS compliance. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543821
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543821.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 16 mm
- Mounting position
- Any
- Max. no. of valve positions
- 2
- Max. no. of pressure zones
- 2
- Burst pressure
- 5 MPa | 50 bar | 725 psi
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque for valve mounting
- 1.2 Nm
- Product weight
- 131 g
- Manifold block type of mounting
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- G1/4
- Pneumatic connection 3
- G1/4
- Pneumatic connection 5
- G1/4
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543821. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
