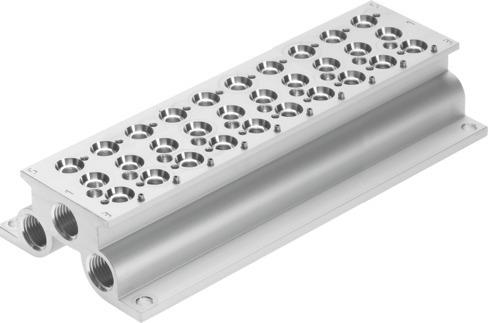

Reference imageConfirm configuration by manufacturer part number.
Festo
543838
Manifold block CPE14-PRS-3/8-10
The Festo 543838 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 20 mm and a product weight of 930 g, configured with through-hole mounting for the manifold block and internal thread mounting for pneumatic valves at a maximum tightening torque of 1.2 Nm. This unit accommodates up to 10 valve positions and 2 pressure zones, integrating G3/8 pneumatic connections 1, 3, and 5 while operating across a pressure range of -0.09 MPa to 1 MPa with a burst pressure of 5 MPa. It is rated for a medium and ambient temperature range of -5 °C to 50 °C, exhibits a corrosion resistance class of 2 for moderate corrosion stress, complies with VDMA24364-B1/B2-L LABS conformity and RoHS material standards, and supports any mounting position. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543838
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543838.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 20 mm
- Mounting position
- Any
- Max. no. of valve positions
- 10
- Max. no. of pressure zones
- 2
- Burst pressure
- 5 MPa | 50 bar | 725 psi
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque for valve mounting
- 1.2 Nm
- Product weight
- 930 g
- Manifold block type of mounting
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- G3/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543838. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
