Festo
543843

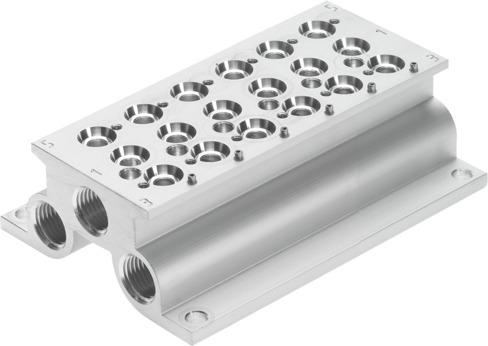

Manifold block CPE18-PRS-3/8-6
The Festo 543843 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 26 mm and a product weight of 870 g. This RoHS compliant part accommodates up to 6 valve positions and 2 pressure zones, featuring G3/8 pneumatic connections for ports 1, 3, and 5, alongside through-hole manifold block mounting and internal thread pneumatic valve mounting. It operates within a temperature range of -5 °C to 50 °C for both the medium and ambient environment, supporting operating pressures from -0.09 MPa to 1 MPa and a burst pressure of 5 MPa, while offering CRC 2 moderate corrosion stress resistance and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543843
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543843.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 26 mm
- Mounting position
- Any
- Max. no. of valve positions
- 6
- Max. no. of pressure zones
- 2
- Burst pressure
- 5 MPa | 50 bar | 725 psi
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque for valve mounting
- 2 Nm
- Product weight
- 870 g
- Manifold block type of mounting
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- G3/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
