Festo
543845

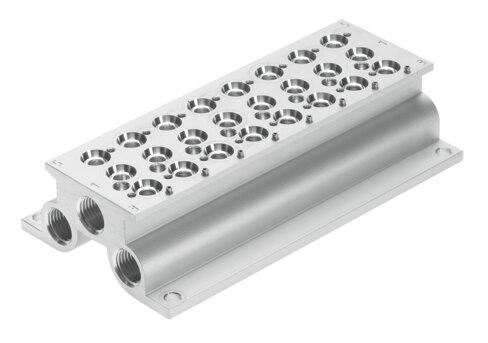

Manifold block CPE18-PRS-3/8-8
The Festo 543845 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 26 mm and a product weight of 1128 g, configured with through-hole mounting for the manifold block and internal threads for pneumatic valve mounting. This unit accommodates up to 8 valve positions and 2 pressure zones, incorporating G3/8 pneumatic connections 1, 3, and 5 while operating within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a temperature span of -5 °C to 50 °C. It achieves a burst pressure of 5 MPa (50 bar / 725 psi), complies with RoHS material standards, meets VDMA24364-B1/B2-L LABS conformity, and provides a corrosion resistance class (CRC) rating of 2 for moderate corrosion stress with any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543845
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543845.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 26 mm
- Mounting position
- Any
- Max. no. of valve positions
- 8
- Max. no. of pressure zones
- 2
- Burst pressure
- 5 MPa | 50 bar | 725 psi
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque for valve mounting
- 2 Nm
- Product weight
- 1128 g
- Manifold block type of mounting
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- G3/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543845. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
