Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

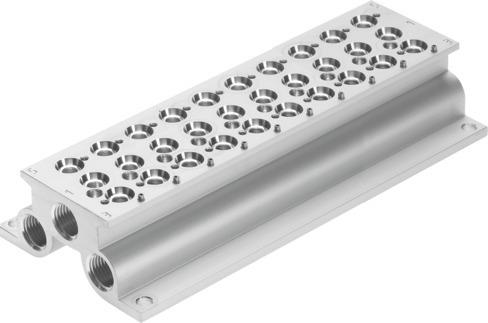

Reference imageConfirm configuration by manufacturer part number.
Festo
543847
Manifold block CPE18-PRS-3/8-10
The Festo 543847 is an industrial manifold block featuring a wrought aluminum alloy rail with through-hole mounting and a 26 mm width dimension. This component supports any mounting position, up to 10 valve positions, and 2 pressure zones, accommodating an operating pressure range of -0.09 MPa to 1 MPa alongside a 5 MPa burst pressure. Built with CRC 2 moderate corrosion resistance, RoHS compliant materials, and G3/8 pneumatic connections 1, 3, and 5, the unit weighs 1386 g and operates within a medium and ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote for this specification.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543847
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543847.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 26 mm
- Mounting position
- Any
- Max. no. of valve positions
- 10
- Max. no. of pressure zones
- 2
- Burst pressure
- 5 MPa | 50 bar | 725 psi
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque for valve mounting
- 2 Nm
- Product weight
- 1386 g
- Manifold block type of mounting
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- G3/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543847. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
